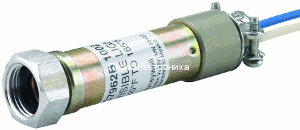

Датчик пламени Honeywell C7962B1010

Датчик пламени Honeywell C7962B1010 обнаруживает видимый свет, испускаемый пламенем.

Product Specifications

Application

Commercial, industrial oil burners

Dimensions (in.)

1 in. diameter x 3 3/4 in. long

Dimensions (mm)

25 mm diameter x 95 mm long

Includes

32007439-001 Mounting Bracket and screws

Used With

Flame Amplifiers: R7851B

Mounting

1/2 in NPT pipe mounting

Approvals, Underwriters Laboratories Inc.

Component Recognized: File No. MP268

Approvals, Canadian Standards Association

Report 158158

Electrical Connections

2 NEC Class 1 lead wires

Vibration

0.5 G max

Approvals, Swiss RE

Acceptable

Ambient Temperature Range (F)

-40 F to +160 F

Ambient Temperature Range (C)

-40 C to +71 C

NEMA Rating

NEMA 1

Lead Length (in.)

96 in.

Lead Length (mm)

2438 mm
