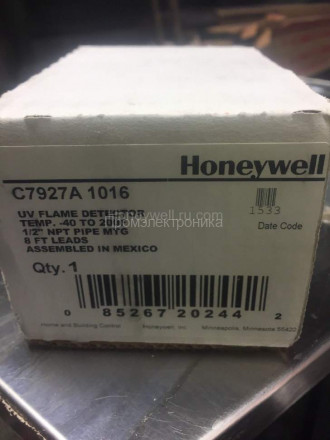

Датчик пламени Honeywell C7927A1016

Honeywell C7927A1016 - датчики пламени, чувствительные к ультрафиолетовому излучению, испускаемое при сгорании топлива. Детекторы пламени используются с контрольными устройствами защиты пламени Honeywell для обеспечения контроля пламени газовых, масляных или комбинированных газовых горелок.

Product Specifications

Application

Gas, Oil, or combination burners-intermittent operation only(burner cycled at least once each 24 hours).

Dimensions (in.)

1 in. diameter x 3 3/4 in. long

Dimensions (mm)

25 mm diameter x 95 mm long

Used With

Flame Amplifiers: R7851B

Comments

Detects ultraviolet radiation in flames

Mounting

1/2 in NPT pipe mounting

Approvals, Underwriters Laboratories Inc.

Component Recognized: File No. MP268

Approvals, Canadian Standards Association

Report 158158

Electrical Connections

2 NEC Class 1 lead wires

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 3011020

Ambient Temperature Range (F)

-40F to +200F

Ambient Temperature Range (C)

-40 C to +93 C

NEMA Rating

NEMA 1

Lead Length (in.)

96 in.

Lead Length (mm)

2438 mm
