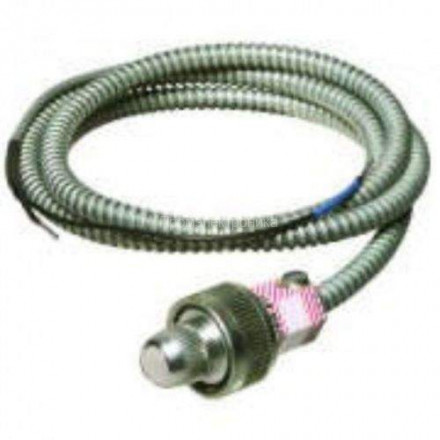

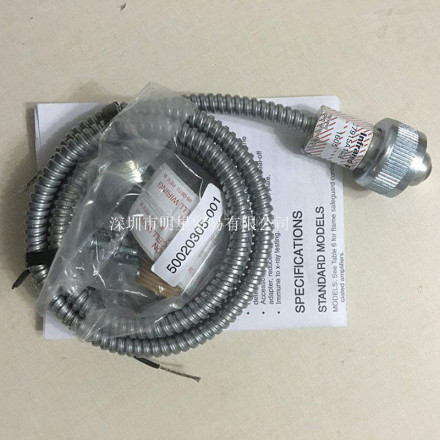

Датчик пламени Honeywell C7915A1028

Honeywell C7915A1028 - датчик пламени, который чувствителен к инфракрасному излучению, возникающему при сжигании топлива, таком как природный газ, нефть и уголь.

Product Specifications

Application

Used for combination or dual-fuel applications

Dimensions (in.)

1 1/4 in. diameter x 2 1/4 in. long

Dimensions (mm)

32 mm diameter x 58 mm long

Includes

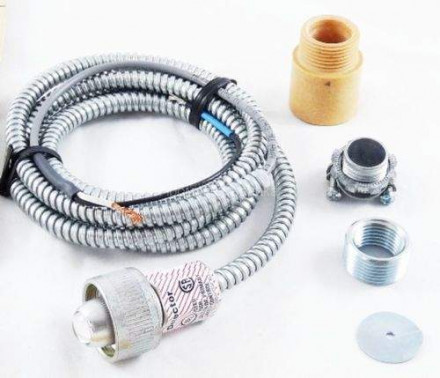

With magnifying lens, 32007255-001 Cell, Orifice, heat block, and reducer bushing

Used With

Flame Amplifiers: R7852

Comments

Infrared (Lead Sulfide) Flame Detector

Mounting

3/4 in. NPT

Approvals, Underwriters Laboratories Inc.

Listed: File No. MP268, Guide No. MCCZ

Approvals, Canadian Standards Association

Certified: Master Report LR95329-1

Electrical Connections

Two no.18 AWG wires

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 24181.03

Ambient Temperature Range (F)

-20F to 125F operating range

Ambient Temperature Range (C)

-18C to 52 operating range

Lead Length (in.)

48 in.

Lead Length (mm)

1219 mm
