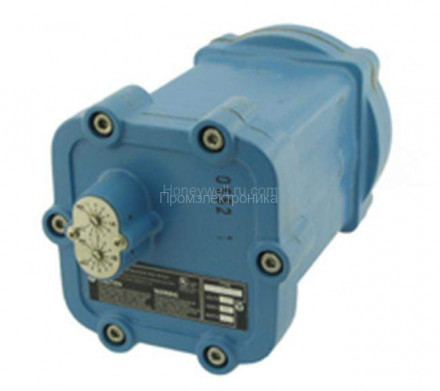

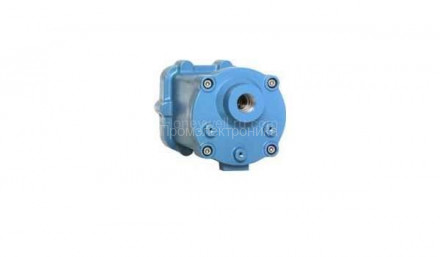

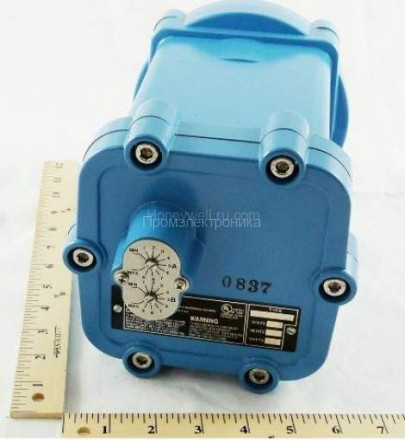

Датчик пламени Honeywell C7076D1027

Honeywell C7076D1027 - датчики пламени для использования с промышленными контроллерами Honeywell

C7076D имеет взрывозащищенный корпус для использования во взрывоопасной атмосфере с смотровым окном

Product Specifications

Application

Gas fired burners; Oil fired burners

Dimensions (in.)

6 5/8 in. high x 6 3/16 in. wide x 11 3/4 in. deep

Dimensions (mm)

168 mm high x 158 mm wide x 300 mm deep

Used With

Flame Amplifiers: R7476, R7886

Weight (lb)

17.6 lb

Weight (kg)

8 kg

Comments

Dynamic self-checking flame detector with adjustable sensitivity

Mounting

1 in. NPT

Electrical Ratings

120 Vac

Frequency

60 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. E34649, Guide No. ZTSZ

Approvals, Canadian Standards Association

Certified: Master Report LR1620

Electrical Connections

Terminal block

Power Consumption

7.0 W

Vibration

0.5 G max

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. FM26980

Approvals, Others

Explosion Proof

Ambient Temperature Range (F)

-40 F to +160 F

Ambient Temperature Range (C)

-40 C to +71 C

NEMA Rating

NEMA 7
