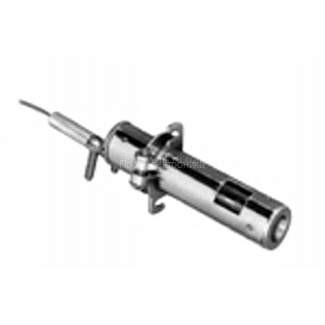

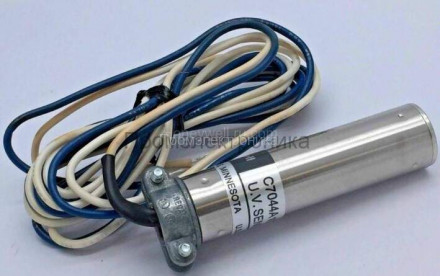

Датчик пламени Honeywell C7044A1006

Honeywell C7044A1006 - датчик пламени для использования с системами контроля пламени с ультрафиолетовыми усилителями.

Product Specifications

Application

Coal fired burners; Gas fired burners; Oil fired burners

Dimensions (in.)

7/8 in. diameter x 3 5/8 in. long

Dimensions (mm)

22 mm diameter x 92 mm long

Includes

Mounting bracket

Used With

Flame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290

Comments

Detects ultraviolet radiation in flames - Side Viewing

Mounting

Mounting Bracket provided

Approvals, Underwriters Laboratories Inc.

Listed: File No. MP268, Guide No. MCCZ

Approvals, Canadian Standards Association

Certified: Master Report LR95329-1

Electrical Connections

2 NEC Class 1 lead wires

Vibration

0.5 G max

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 24181.03

Ambient Temperature Range (F)

0 F to 215 F

Ambient Temperature Range (C)

-18 C to +102 C

Lead Length (in.)

72 in.

Lead Length (mm)

1829 mm
