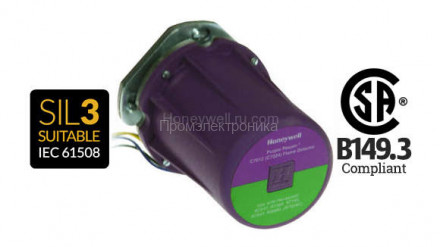

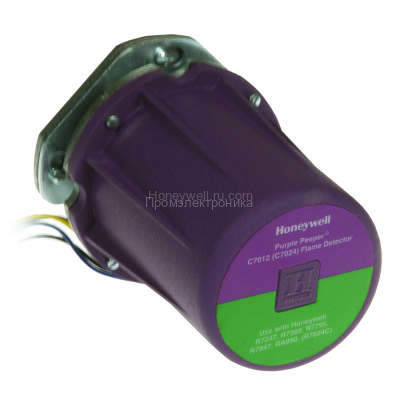

Датчик пламени Honeywell C7012E1195

Honeywell C7012E1195 - датчики пламени для использования с контроллерами и усилителями от Honeywell.

Детекторы Honeywell C7012E1195 предназначены для обнаружения ультрафиолетового излучения, образующегося при сжигании газа, нефти, угля или других видов топлива.

Установка возможна горизонтально, вертикально или под любым углом .

Уменьшение помех при подключении двух датчиков параллельно.

Product Specifications

Application

Gas, Oil or Coal fired burners

Dimensions (in.)

5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long

Dimensions (mm)

133 mm diameter (includes mounting flange) x 183 mm long

Includes

Cast case and cover

Used With

Flame Amplifiers: R7247C, R7847C

Weight (lb)

4.25 lb

Weight (kg)

1.9 kg

Comments

Dynamic self-checking flame detector

Mounting

3/4 in. NPT

Electrical Ratings

110 Vac

Frequency

50 Hz

Approvals, Underwriters Laboratories Inc.

Listed: File No. MP268, Guide No. MCCZ

Approvals, Canadian Standards Association

Certified: Master Report LR95329-1

Electrical Connections

6 NEC Class 1 Color-coded lead wires.

Power Consumption

7.0 W

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 14740.01

Approvals, Others

BGC (Europe)

Ambient Temperature Range (F)

-20 F to +175 F

Ambient Temperature Range (C)

-20 C to +79 C

NEMA Rating

NEMA 4

Lead Length (in.)

96 in.

Lead Length (mm)

2438 mm
