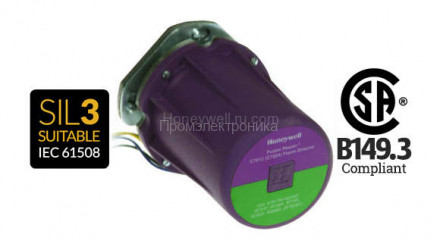

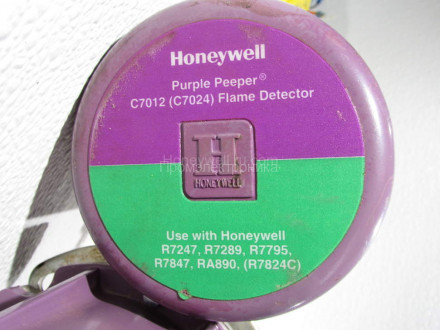

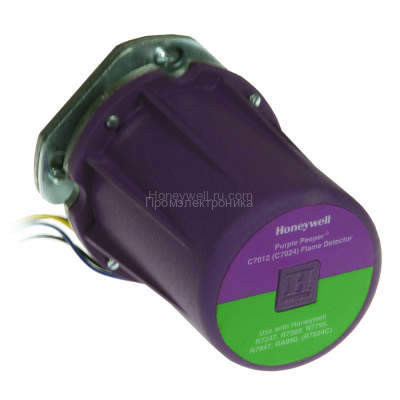

Датчик пламени Honeywell C7012A1186

Honeywell C7012A1186 - датчики пламени  для использования с контроллерами и усилителями от Honeywell.

Детекторы Honeywell C7012A1186 предназначены для обнаружения ультрафиолетового излучения, образующегося при сжигании газа, нефти, угля или других видов топлива.

Установка возможна горизонтально, вертикально или под любым углом .

Product Specifications

Application

Gas, Oil or Coal fired burners

Dimensions (in.)

5 1/4 in. diameter (includes mounting flange) x 7 7/32 in. long

Dimensions (mm)

133 mm diameter (includes mounting flange) x 183 mm long

Includes

Cast case and cover

Used With

Flame Amplifiers: R7247A,B; R7847A,B; R7257

Weight (lb)

4.25 lb

Weight (kg)

1.9 kg

Comments

For use with rectification flame signal amplifiers

Mounting

3/4 in. NPT

Electrical Ratings

208 Vac

Frequency

50 Hz; 60 Hz

Electrical Connections

4 NEC Class 1 Color-coded lead wires.

Power Consumption

2.5 W

Approvals, Swiss RE

Acceptable

Approvals, Factory Mutual

Approved: Report No. 14740.01

Ambient Temperature Range (F)

25 F to 175 F

Ambient Temperature Range (C)

-4 C to +79 C

NEMA Rating

NEMA 4

Lead Length (in.)

96 in.

Lead Length (mm)

2438 mm
